Case Profile: Simplifying Root Canal Preparation

Using EdgeOne Blaze Utopia for greater safety and predictability

by Dr. Jianing (Jenny) He

The chemomechanical preparation of the root canal system is the critical step that determines the success of obturation and, ultimately, the entire endodontic treatment. While the advent of NiTi rotary files revolutionized root canal instrumentation three decades ago, the pursuit of greater efficiency, safety, and simplicity continue to drive innovation and expand boundaries.

Among the recently introduced file systems, EdgeOne Blaze Utopia represents a significant leap forward, integrating key technologies to address clinical challenges. Its proprietary FireWire Blaze heat treatment provides exceptional flexibility at body temperature without sacrificing cutting efficiency. The system employs a reciprocating movement, which inherently reduces stress on the instrument and lowers the risk of cyclic fatigue and file separation. Furthermore, its regressive taper is designed to preserve structurally important dentin in the cervical third, promoting better fracture resistance and long-term tooth survival (Fig. 1). Used as a single-file system in a crown-down sequence, EdgeOne Blaze Utopia streamlines workflow with remarkable simplicity. It is a powerful tool that makes predictable, safe canal preparation more achievable than ever.

The EdgeOne Blaze Utopia file system is available in four tip sizes (ISO 20 to 45). File selection is based on canal anatomy. R35 or R45 are suitable for large, straight canals such as maxillary anterior teeth and mandibular premolars (Fig. 2). R25 is appropriate for most low- to moderate-difficulty cases, such as maxillary premolars and molars with patent, non-severely curved canals (Fig. 3). R20 is recommended for small, narrow canals and canals with more severe curvature to better follow the original anatomy and minimize procedural errors.
Case Profile: Simplifying Root Canal Preparation

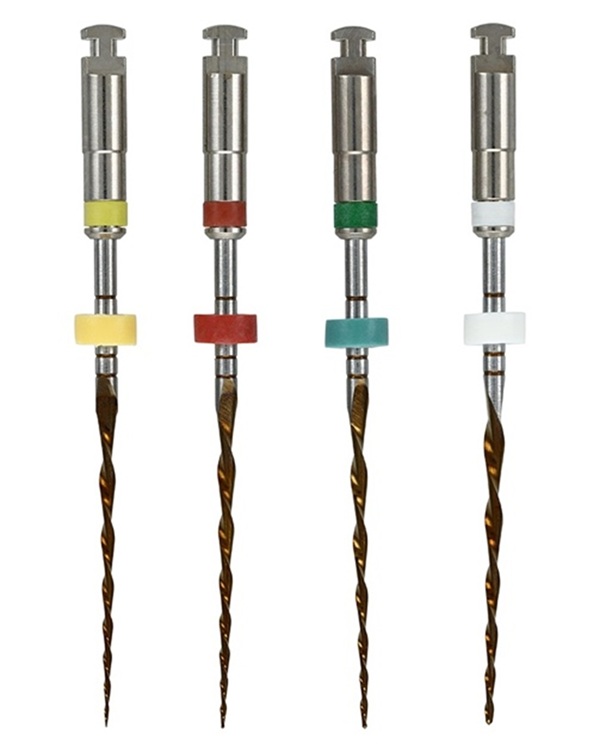

Fig. 1: EdgeOne Blaze Utopia files R20, R25, R35, and R45.
Case Profile: Simplifying Root Canal Preparation
Fig. 2: Pre- and post-operative radiographs of tooth #9 as an example of a large, straight canal prepared with EdgeOne Blaze Utopia R45.
Case Profile: Simplifying Root Canal Preparation
Fig. 3: Pre- and post-operative radiographs and clinical photos of tooth #30 as an example of a case with moderate difficulty prepared with EdgeOne Blaze Utopia R25.

Clinical case and procedure protocol
A 60-year-old male patient was referred for non-surgical root canal treatment (NSRCT) of tooth #14. The patient reported no spontaneous pain, and clinical examination revealed an intact full-coverage crown placed approximately one year prior. The tooth was non-responsive to EdgeIce, and periapical radiography demonstrated radiolucencies associated with all three roots. A diagnosis of pulpal necrosis with asymptomatic apical periodontitis was established. Following a discussion of treatment options, the patient consented to NSRCT. He was advised of the specific challenge presented by the severe curvature in the mesial-buccal (MB) root and the associated risk of file separation.

Access opening was created through the existing crown; no recurrent decay or fracture was found. Four canals were located. Coronal flaring was performed with an EdgeTaper Blaze Utopia SX file. Working lengths were determined using the built-in electronic apex locator (EAL) in the EdgeApex HP motor (Fig. 4).
Case Profile: Simplifying Root Canal Preparation

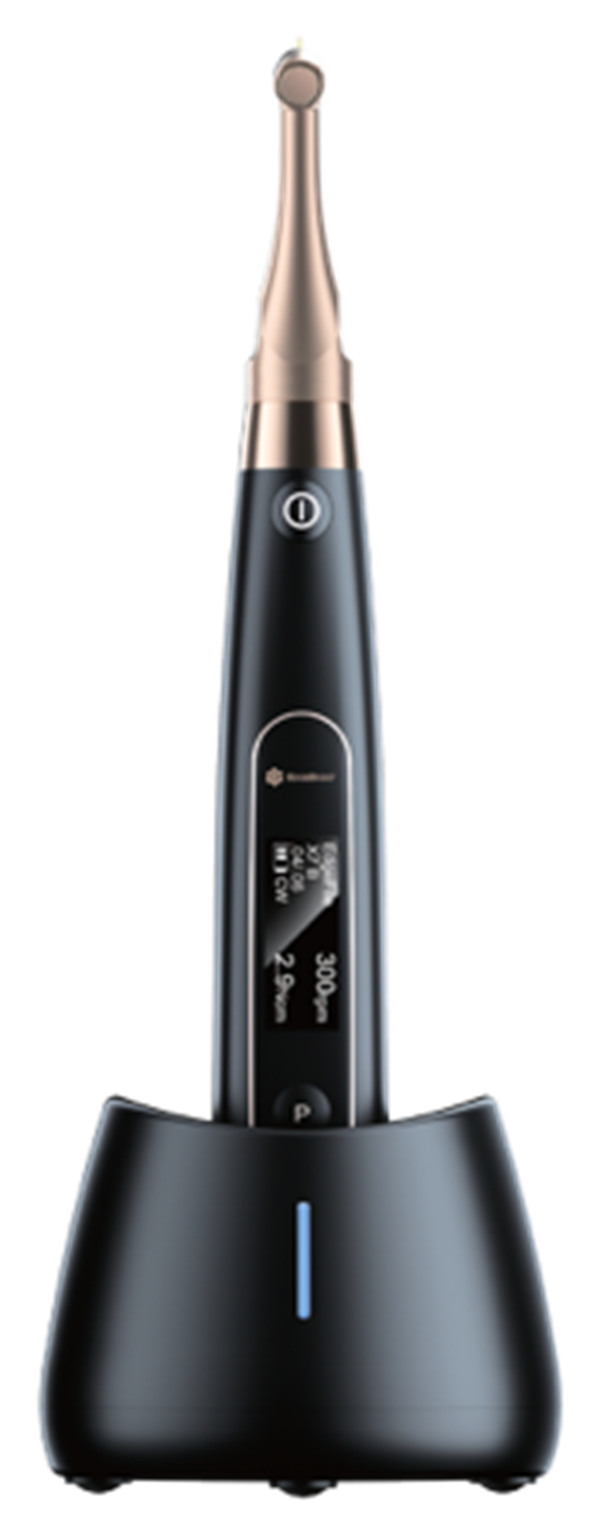

Fig. 4: EdgeApex HP motor with built-in electronic apex locator.

Given the severe curvature, the MB and MB2 canals were initially negotiated and enlarged with hand files (#6 to #10) using quarter-turn, push-pull motions. A mechanical glide path was then established using an R-Glide file in the reciprocating mode of the EdgeApex HP motor. Canal preparation proceeded with a crown-down technique. The MB, MB2, and DB canals were prepared with an R20 file, advancing in 1–2 mm increments with each pass. The P canal was prepared with an R25 file. Further apical enlargement was completed using EdgeSequel Utopia files: 30/.04 for the MB, MB2, and DB canals, and 35/.06 for the P canal. Irrigation with 3% sodium hypochlorite was performed throughout the instrumentation process between each pass of the files.

Following final preparation, working lengths were reconfirmed. Master gutta-percha cones corresponding to the final apical sizes were fitted. The canals received a final irrigation sequence with 3% sodium hypochlorite and 17% EDTA, dried with paper points, and obturated using a bioceramic sealer-based single-cone technique with EdgeBioceramic sealer. EdgePack was used as a heat source to section the gutta-percha points.

The orifices and pulpal floor were sealed with a resin-modified glass-ionomer liner, and the access cavity was temporized with Cavit. The patient was referred back to the general dentist for permanent restoration. A postoperative radiograph confirmed the maintenance of original canal curvature and appropriate length control (Fig. 5).
Case Profile: Simplifying Root Canal Preparation
Fig. 5: The pre- and post-op radiographs of tooth #14 as an example of a case with severe curvature prepared with EdgeOne Blaze Utopia R20, and a post-obturation photo of the access cavity showing the MB, MB2, and the DB orifices.

General recommendations for safe canal preparation
  • Straight-line access: Pre-flare the coronal third to reduce file engagement and stress.
  • Copious irrigation: Use sodium hypochlorite throughout instrumentation to reduce friction and facilitate debris removal.
  • File inspection: Frequently examine instruments under magnification for signs of damage such as stripping or unwinding. Discard the damaged file and use a new one to prevent file separation.
  • Single use: Employing files as single-use items is highly effective for improving both safety and procedural efficiency.

Conclusion
This case demonstrates that the EdgeOne Blaze Utopia system, when integrated into a meticulous clinical protocol, is a valuable addition to the modern endodontic armamentarium to facilitate the achievement of consistent, high-quality outcomes even in anatomically complex cases.

This content is sponsored by EdgeEndo.
To request a product sample for evaluation, visit edgeendo.com/product-evaluation.

Author Bio
Jenny He Dr. Jianing (Jenny) He received a certificate in endodontics and a PhD in oral biology from the University of Connecticut. She is a diplomate of the American Board of Endodontics and an adjunct professor at Texas A&M University College of Dentistry. She has published more than 50 peer-reviewed manuscripts, serves as an associate editor of the Journal of Endodontics, and lectures internationally while maintaining a private practice in McKinney, Texas.
