The aphorism “no good deed goes unpunished”
certainly applies to the clinical practice of
dentistry. How often are we persuaded to do a
“favor” for a patient when we know it is against
our better judgment, only to have a less than
ideal result ensue?
Case Presentation
A healthy, 32-year-old man presented to my
office on emergency referral from his general
dentist. He was at his dentist’s office for his regularly
scheduled six-month recall with the dental
hygienist. He mentioned to her that he had
been having occasional intermittent pain in the
left third molar region over the last few
months. She examined this area and noticed
swelling and redness of the operculum over the
distal half of tooth number 17. A periodontal
probe confirmed a 6mm pocket on the distal aspect of the tooth. At the end of her treatment,
the hygienist called over the dentist,
who is a smart, skilled, high-quality practitioner,
and a friend of mine. He diagnosed
pericoronitis and recommended to the
patient the he be placed on antibiotics and
referred to my office for removal of the
problematic tooth, as well as evaluation of
the other third molars.
The patient was amenable to this, but the
hygienist had a “better” idea. She suggested
to the dentist that he remove the tooth while
the patient was in the office, since it “looks
easy” and he had the time to do it. He was
convinced, and proceeded to give local anesthesia
and remove the tooth. About an hour
later, the crown was off, but the roots would
not budge. A call was made to my office and
the patient was sent right over. A cone beam
CT scan was obtained in the GP office, and
this was sent to me with the patient via a CD.
On examination, the extraction site
looked to have a small incision, with some
minor soft-tissue trauma and inflammation
(Fig. 1). On the cone beam CT scan, you
could see the two roots of tooth #17, with a
large radiolucent area distal to where the
crown was located. It was fairly round and
located distal to where the crown of tooth
#17 had been. This scan shows the remaining roots quite well, as well as the approximate
location of the mandibular nerve. An incidental
finding here is an elongated, calcified
stylohyoid ligament. When this presents
with symptoms of unilateral sore throat, difficulty
swallowing, unilateral neck or facial
pain, tinnitus or ear pain, it is referred to as
“Eagle Syndrome (Fig. 2). I called the dentist
and asked if he had noticed an area of radiolucency
behind tooth #17, as I would like
to know whether this was due to pathology
versus surgical trauma. He said he was
unaware of a lesion and would send over the
pre-operative radiographs.
The patient was sent home with a prescription
for cephalexin 750mg BID (#12)
and chlorhexidine oral rinse BID (16oz), and
returned the next morning for removal of
tooth #17 under general anesthesia. The procedure
was uneventful. The root was
removed without complication and the
patient was sent home with instructions to
continue the chlorhexidine and cephalexin,
maintain a soft diet, apply ice packs intermittently
for the first day and to return in one
week. He reported some pain for a day, but
otherwise had an easy recovery. Our postoperative
radiograph showed complete
removal of the roots (Fig. 3).
Discussion
I mentioned that the patient’s dentist
was sending over the pre-op images of tooth
#17 so that we could evaluate whether there
had been any pathology distal to the area.
Two radiographic images were e-mailed
over. The first (Fig. 4) was a bitewing that
was probably taken some time before, as it
showed Class II carious lesions, which were
now restored. Less than half of the crown of
tooth #17 was visible, and even less of the
roots. The other radiograph was more current,
as teeth #18 and #19 were restored
(Fig. 5). Only a very small portion of the
mesial root of tooth #17 was visualized, and
there was a distinct shadow of what may be the mandibular nerve overlapping the root
tips. So, the question of pathology associated
with tooth #17 remains unanswered.
While these radiographs may be acceptable
for diagnosis of dental disease, they are
unfortunately not acceptable as pre-operative
radiographs for the removal of teeth, especially

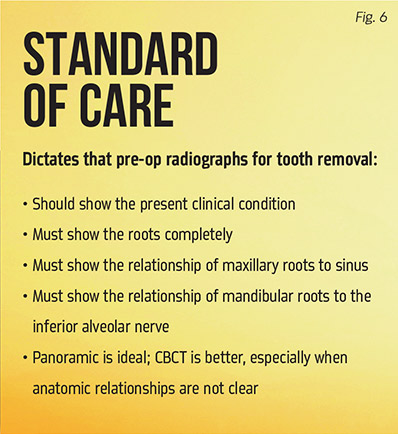

third molars. The standard of care for preoperative
imaging prior to removal of teeth is
meant to facilitate surgery, protect our patients
and keep us out of trouble (Fig. 6). It has been
developed over many years of practice and
many times in the courtroom.
The first requirement is that it shows the
current clinical condition of the tooth to be
removed. This helps to justify the procedure,
should an issue develop, and it also demonstrates
any anatomical variations that may be
present, which could modify the surgical
technique used. It also needs to show the
entire root and periapical region, as well as
the relationship to the mandibular nerve
and/or maxillary sinus, for upper and lower
teeth, respectively. It may be difficult to capture
these areas with periapical radiographs,
and if they are not clearly visualized, then a
panoramic radiograph is indicated. If there is
intimate proximity to the mandibular nerve
or sinus and the exact relationship cannot be
determined from existing images, then a
cone beam CT scan may be required to satisfy
this need.
I mentioned that the patient was sent home
on antibiotics and analgesic and returned for
surgery. There are a number of patient management
issues here. The first is that the patient has
had a long morning and is traumatized from spending an hour in the dental chair getting
part of a tooth out. The prospect of another
procedure is stressful for most patients, and so
being able to offer to complete the procedure
under general anesthesia is usually a great relief
and patients will rarely refuse.
Another reason has to do with risk management
for the subsequently treating specialist.
Just imagine that the remainder of the
tooth was removed right away, and postoperatively
the patient complains of a numb
lip or tongue. If the patient had still been
numb from the first local anesthetic, it would
not be possible to tell if the injury occurred at
the general dental office or in the specialist’s
office. For that reason, it is recommended by
most liability carriers, that the local anesthetic
be allowed to wear off completely, and
the nerve status assessed, before a further
attempt to remove the tooth is made.
Another issue to discuss is one of
informed consent. Surgical removal of an
impacted tooth requires a discussion with the
patient of the nature of the procedure, and
the most common potential risks and complications,
as well as the alternatives to surgery
and the risks of not having surgery. The
option of being seen by a specialist should
also be discussed. If the general practitioner
will be performing the procedure, then the
full requirement of informed consent falls on
his/her shoulders. If the patient will be going
to the specialist, then the bulk of the discussion
will be in the specialty office. In addition
to having inadequate pre-operative radiographs
of the teeth themselves, we are still
unsure whether there was any pre-existing
pathology distal to tooth #17. We will be able
to address that in surgery.
So, now the surgery itself. Why did the
dentist, who has successfully taken out hundreds
of teeth, fail at completing removal of
what looked like should be a straightforward
extraction? Looking back at figure 1 might
give the first clue. It appears there was minimal
flap development, so that access and
visualization of the surgical field was inadequate
for the procedure. One of the first
things I teach in my lectures is the importance
of adequate exposure and access to the
surgical field. In this case, I started with a sulcular
incision and distal release so that the
tooth and surrounding anatomy could be
clearly seen (Fig. 7). Irrigation and curettage
is necessary to get a clear view of the area.
I also recommend using a headlight and
loupes, so you can really see the surgical field
and what you are doing.
In order to remove the roots, which were
completely below the bone level, I make a
trough with a surgical bur in a surgical handpiece
along the buccal of the root. This gives
you a purchase point for elevation of the root,
as well as reducing the interference to removal.
The elevator is placed between the root and
the dense buccal bone (Fig. 8). As you may be
able to appreciate in the clinical image, there
was a large bony defect, as seen in one of the
radiographs. This area was explored at surgery
and no cystic or solid tissue was present. So,
we can assume that this was due to surgical
bone removal.
Another potential downfall for the dentist in this
case is not having the right instruments. Just as there
are instruments that facilitate restorative procedures,
there are instruments beyond the basic straight elevator
and universal forceps that become familiar in residency
to oral surgeons. Before beginning potential
surgical extractions, I would recommend becoming
familiar with a few of these intruments. It makes surgery
much easier and less stressful.
And lastly, if you are doing surgery, invest in a
rear-venting or electric surgical handpiece. It will be
much more proficient at cutting bone and sectioning
teeth and does not carry the risk of causing a subcutaneous
air emphysema.
As you have seen here, surgery is much more than
just “taking out a tooth.” It requires evaluation and
planning to do it well. It involves understanding the
anatomy and having clear radiographic and clinical
visualization of the surgical field. Even when things
don’t work out as planned, we can still learn a lot
from a critical evaluation of why it happened and
how the situation was remedied. As the cliché goes,
that is why we call it “practice.” The other message to
take home is next time your hygienist convinces you
that a procedure looks easy… let her do it!
The video version of this case presentation can be
found at OnlineOralSurgery.com.
|
