A System for Initial Canal Negotiation Turning the most stressful phase of endodontics into a predictable process

by Dr. William Nudera

Ask almost any dentist what the most stressful part of endodontics is, and the answer is usually the same: canal instrumentation. It is the phase most clinicians associate with “doing endo,” and it is also where the majority of iatrogenic errors occur. Ledges, transportation, blockages, and separated instruments almost always originate during instrumentation. Even experienced endodontists can find this phase humbling.

The underlying issue is rarely instrumentation itself. The real problem is a lack of structure. When instrumentation is approached as a collection of isolated techniques, the process often feels unpredictable and frustrating. When it is approached as a system, however, the procedure becomes far more logical and manageable.

Root canal instrumentation can be organized into four phases, each with its own objectives and techniques. Understanding these phases transforms instrumentation from a guessing game into a predictable workflow. This article focuses on the most critical of those phases: initial canal negotiation.


A framework for canal instrumentation
Root canal instrumentation can be divided into four sequential phases: initial canal negotiation, working length determination, glide path development, and final canal shaping. Each phase represents a different clinical objective and requires its own set of techniques and decision points.

Most procedural complications occur during the initial canal negotiation phase, which is why developing a systematic approach to this stage has the greatest impact on clinical success. When negotiation is performed correctly, the remaining phases become significantly easier and more predictable.


Defining the playing field: Canal zones
Before discussing technique, it is helpful to establish a consistent way to describe file position within the canal. Traditionally, roots are divided into coronal, middle, and apical thirds. While conceptually useful, these divisions vary with root length and therefore lack consistent clinical reference points.

A more practical approach is to define canal regions using fixed anatomical measurements (Fig. 1). In this system, the coronal zone (CZ) is defined as the first three millimeters apical to the cemento-enamel junction. The apical zone (AZ) represents the final three millimeters approaching the apex. The mid-root zone (MRZ) is the variable region between these two landmarks. Anchoring zones to anatomical measurements rather than proportional thirds allows file position to be described more reliably across different teeth and root lengths.
A System for Initial Canal Negotiation

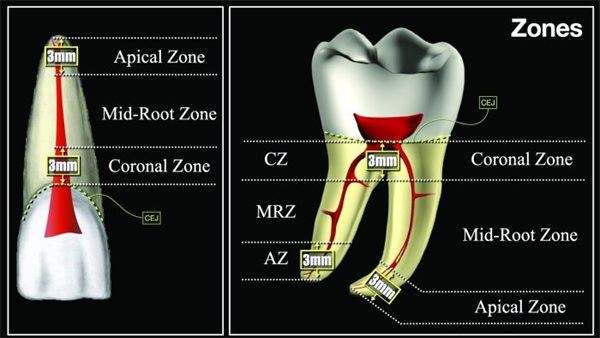

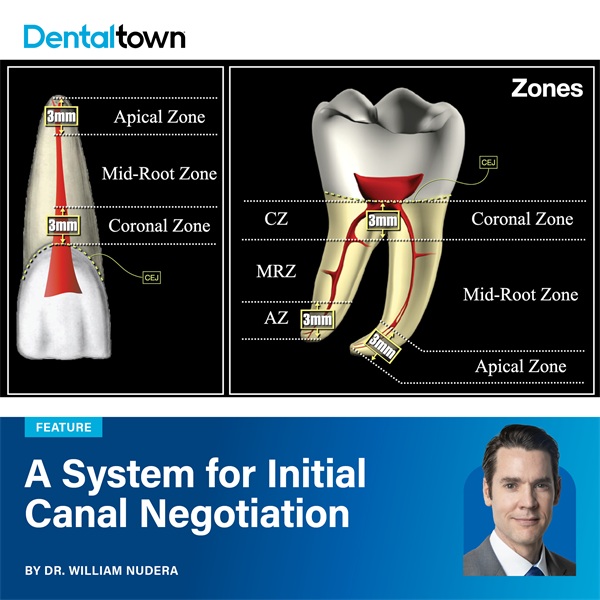

Fig. 1: Canal zones

Phase 1: Initial canal negotiation
All root canal instrumentation begins with canal negotiation. The initial canal negotiation phase consists of six structured steps, the first four of which are primarily diagnostic. These steps establish canal access, reveal where the file currently sits within the canal system, and provide an early sense of case difficulty. Gathering this information early allows decisions to be made deliberately rather than forcing instruments deeper when progress stalls.

Step 1: Estimate working length
Negotiation begins with estimating the working length. Using a preoperative radiograph—or preferably CBCT imaging—the distance from the occlusal or incisal reference point to the radiographic apex is measured (Figs. 2–3). CBCT imaging often reveals canal curvature, bifurcation, or calcification that may not be visible on traditional radiographs. This measurement becomes the target length for the negotiation phase.
A System for Initial Canal Negotiation

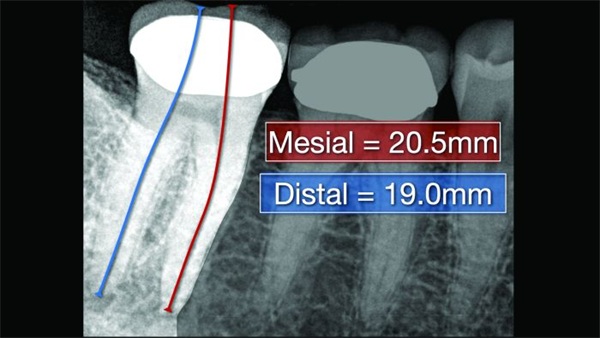

Fig. 2: Estimated working length on periapical radiograph
A System for Initial Canal Negotiation

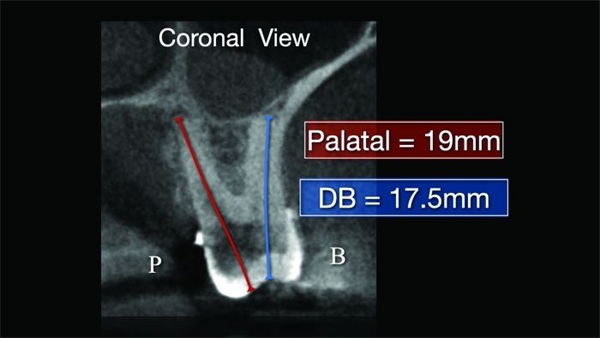

Fig. 3: Estimated working length on CBCT

Step 2: Determine canal free space
With sodium hypochlorite acting as a lubricant, a size 10 hand file is introduced into the canal and allowed to advance passively until resistance is encountered. The file should never be forced and should not extend beyond the estimated working length. The distance the file travels represents the canal free space, or the portion of the canal that is already open. Once the file stops, the silicone stopper is adjusted to the reference point, and the distance is measured.

Step 3: Calculate case difficulty
Case difficulty can be estimated using a simple calculation:
Estimated Working Length – Canal Free Space = Case Difficulty Score

This value represents the remaining distance to the apex and indicates where the file currently sits within the canal system.

Step 4: Interpret the difficulty score
Interpreting the difference reveals the canal region reached. When the difference is between zero and three millimeters, the file is likely already within the apical zone, and the case is relatively straightforward. Larger differences indicate the file remains within the mid-root zone, suggesting moderate difficulty. When the difference is large enough that the file remains within the coronal zone (within three millimeters of the estimated working length), a mechanical obstruction should be suspected.

At this stage, resist the instinct to push harder on the file. When a size 10 file cannot advance beyond the coronal portion of the canal, the correct response is to determine why the file has stopped. Possible causes include incorrect file angulation, false canal, narrow canal diameter, sub-orifice calcification, debris or restorative material obstruction, or an early canal bifurcation.

Solutions may include adjusting file trajectory, confirming canal location under magnification, or performing careful ultrasonic troughing when calcification is suspected. If the canal still cannot be located despite systematic troubleshooting, a mid-treatment CBCT scan or referral to an endodontic specialist may be appropriate.

Step 5: Orifice modification
Once the file has advanced beyond the coronal zone, orifice modification should be performed. This step enlarges the canal entrance at the junction of the pulp chamber floor and canal orifice and provides two important benefits. First, removing restrictive coronal dentin creates improved straight-line access, allowing files to advance more passively into the mid-root and apical regions. Second, early coronal enlargement improves working length stability.

Orifice modification is typically performed with an orifice opener, a file designed specifically for enlarging the canal entrance. Orifice openers are manufactured in a variety of tip sizes and lengths. The file dimensions best suited for this method have tip sizes between ISO 15 and 20 and are shorter in length, typically 16–19 mm (Fig. 4).

In single-rooted teeth, the instrument is used with a gentle up-and-down motion. In multi-rooted teeth, a lateral envelope motion directed toward the outer canal wall helps remove dentin projections and widen the orifice safely (Figs. 5–7). The instrument should always advance passively and should never be forced.

In narrow canals, alternating between the orifice opener and a size 10 file can safely enlarge the coronal zone. A typical sequence involves advancing the orifice opener two to three millimeters, irrigating with sodium hypochlorite, and then reintroducing a size 10 hand file using a watch-winding motion. Repeating this sequence allows the instruments to gradually advance deeper until orifice modification is complete.
A System for Initial Canal Negotiation

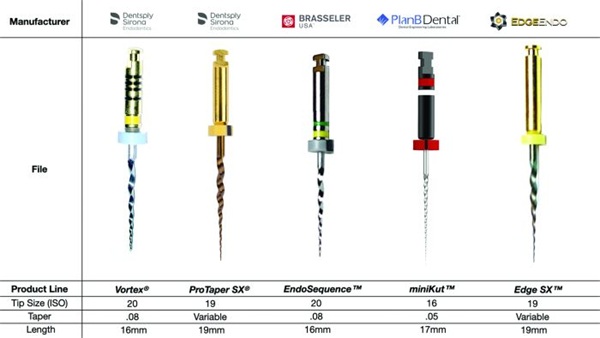

Fig. 4: Orifice openers. Orifice openers are available from a wide range of manufacturers and product lines. The examples shown here represent only a small sample, as many other manufacturers and additional product lines are also available.
A System for Initial Canal Negotiation

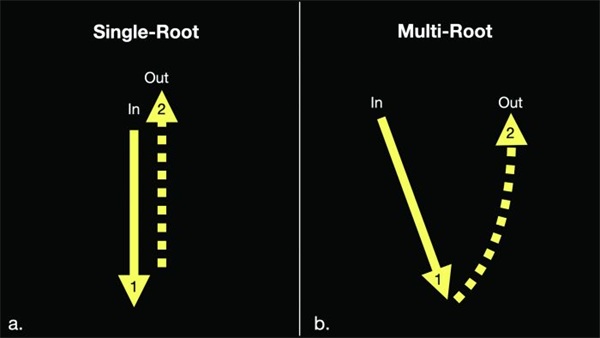

Fig. 5: Orifice modification envelope of motion for single-rooted tooth (a) and multi-rooted teeth (b).
A System for Initial Canal Negotiation

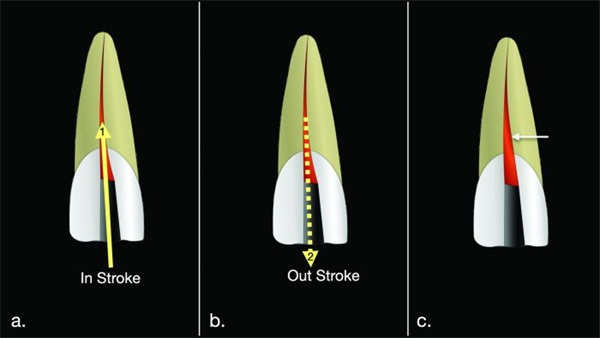

Fig. 6: Orifice modification envelope of motion for single-rooted tooth showing the in stroke (a), out stroke (b), and the resulting preparation of the Coronal Zone (arrow) (c).
A System for Initial Canal Negotiation

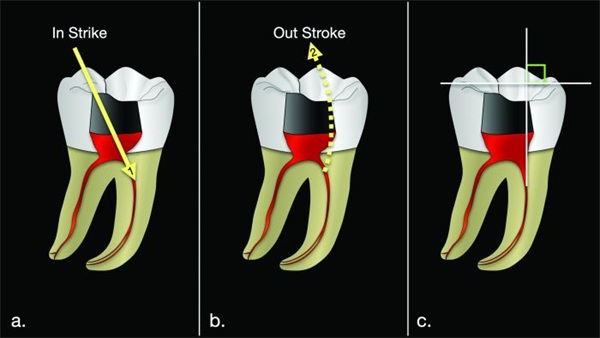

Fig. 7: Orifice modification envelope of motion for multi-rooted tooth showing the in stroke (a), out stroke (b), and the resulting preparation of the Coronal Zone (c). Note the right angle of the canal orifice to the occlusal table—a Coronal Zone preparation commonly referred to as “straight-line access.”

Step 6: Reaching the estimated working length
Once unrestricted access to the mid-root region has been established, the final step of negotiation is advancing a size 10 file to the estimated working length. Ideally, the file will reach this length without resistance. If it does not, tactile feedback determines the next step.

Two sensations are possible: quick file binding (QFB) or hard file stop (HFS).

Quick file binding
Quick file binding occurs when the canal is patent but narrow or curved, causing the file to engage the canal walls and stop abruptly. This can give the impression of an obstruction when the file is actually binding laterally within the canal.

Introducing a size 8 file helps confirm this situation. Because the size 8 has a smaller diameter, it can navigate tighter spaces. If the size 8 advances farther than the size 10, canal patency is confirmed, and quick file binding is present.

Two hand-filing techniques are particularly helpful in this situation: the 8/10 toggle technique and the passive step-back technique.

If the size 10 file reaches the apical zone, the 8/10 toggle technique is used. Size 8 and 10 files are alternated using passive watch-winding motion with light apical pressure while irrigating between passes. With each cycle, the instruments should progress slightly deeper until the estimated working length is reached.

If the file remains in the mid-root zone, the passive step-back technique is preferred. This technique introduces a size 15 file and functions as a controlled mid-root enlargement method. Using passive watch-winding motion and light apical pressure, the sequence progresses from size 8 to 10 and then to 15. Because of the increasing diameters, the size 10 will not advance as far as the 8, and the 15 will not advance as far as the 10. Each 8-10-15 sequence constitutes a cycle. With irrigation between cycles, the files gradually progress deeper until the estimated working length is achieved.

If the size 8 and size 10 files begin stopping at the same length, the situation has changed from quick file binding to a hard file stop.

Hard file stop
A hard file stop occurs when the file stops abruptly as though it has contacted a solid wall, and neither the size 8 nor the size 10 file advances further. Possible causes include canal bifurcation, sharp curvature, debris blockage, ledge formation, or a foreign obstruction such as restorative material or a separated instrument.

Evaluation should begin with a review of preoperative imaging, particularly CBCT if available. Attention should be directed toward identifying sub-orifice canal division, abrupt curvature, or the presence of restorative material or separated instruments. A mid-treatment radiograph or CBCT scan can help rule these possibilities in or out.

If anatomy does not explain the stop, a simple clinical maneuver can differentiate debris blockage from ledge formation. Insert a size 10 file to the stop, apply slight apical pressure, rotate the file approximately 90 degrees clockwise, and withdraw it. If tug-back is felt during withdrawal, debris blockage is likely. If the file withdraws freely, a ledge is more likely.

When debris blockage is suspected, the 8/10 push-and-pull technique can reestablish patency. After thorough irrigation, a size 8 file is inserted using a gentle twist-push-pull motion, followed by a size 10 file. Alternating between these instruments gradually clears debris while allowing apical advancement. Irrigation should be performed between passes, and pressure should remain controlled to minimize the risk of instrument separation.

When a ledge is suspected, two techniques can help reestablish the canal path: strategic file bending and the working out the stop (WOtS) technique. Strategic file bending involves placing a small 45-degree bend in the terminal flutes of a size 8 or 10 file (Fig. 8). The file is then inserted to the obstruction and rotated until it suddenly advances, indicating that the original canal space has been located. Aligning the silicone stopper notch with the direction of the bend helps maintain orientation (Fig. 9).

Once the canal has been reentered, the ledge can be smoothed using the WOtS technique. Small vertical movements combined with approximately 90-degree reciprocation are used while gradually increasing file size from 8 to 10 and then to 15. If the file slips coronal to the ledge, strategic file bending must be repeated. When a straight size 10 file passes freely beyond the ledge, the canal pathway has been successfully reestablished.
A System for Initial Canal Negotiation

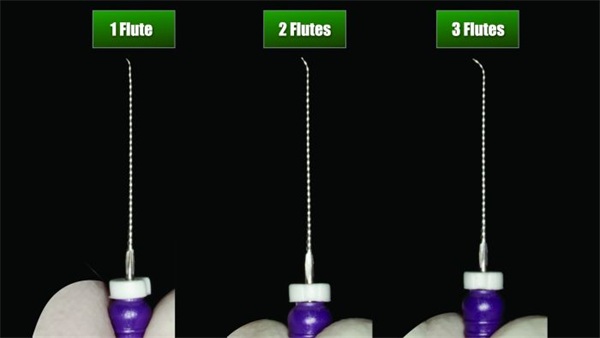

Fig. 8: Strategic file bends placed in one flute, two flutes, and three flutes of a size 10 hand file.
A System for Initial Canal Negotiation

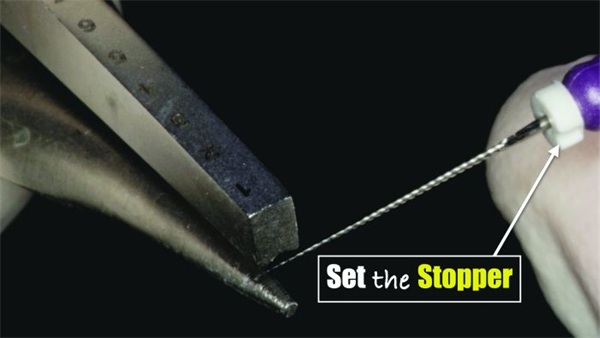

Fig. 9: Stopper alignment. The notch (or mark) on the stopper should be placed in line with the direction of the strategic file bend.


Conclusion
The initial canal negotiation phase is often the most challenging part of root canal treatment. It is not uncommon to use more than one of these techniques during a single negotiation process. Each canal presents unique anatomical challenges, and progress often depends on interpreting tactile feedback and adapting strategy accordingly (Fig. 10).
A System for Initial Canal Negotiation

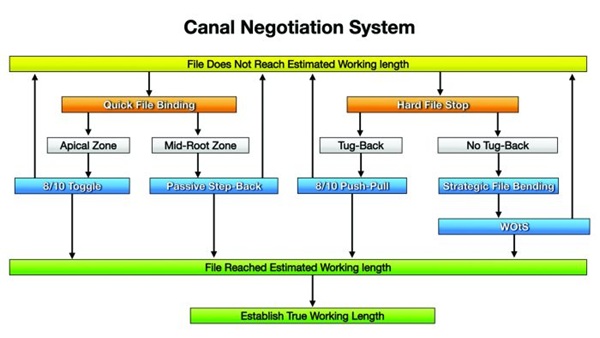

Fig. 10: Canal negotiation system algorithm.

Negotiation concludes once a size 10 file reaches the estimated working length. At that point, the canal has been located, the anatomy has been mapped, and the system is ready for working length confirmation, glide path development, and final shaping.

This framework transforms what many dentists experience as the most intimidating phase of endodontics into a series of logical decisions. Some canals are straightforward, while others require patience, strategy, and multiple techniques. When a clear system is followed, however, canal negotiation becomes far less mysterious and far more predictable. The system does not eliminate the difficulty of the process. It simply ensures that you are never navigating the canal blindly.
Author Bio
Dr. William Nudera William J. Nudera, DDS, MS, is an American Board-certified endodontist, educator, author, and mentor known for a conservative, principle-based approach to predictable endodontic care. A diplomate of the American Board of Endodontics, he owns and operates Specialized Endodontic Solutions and Highland Park Endodontics in the Chicago suburbs. Nudera is the author of NuEndo Rethinking Endodontics, has published in the Journal of Endodontics, and lectures nationally and internationally. A former captain in the U.S. Air Force Dental Corps, he is also a faculty member at the University of Illinois at Chicago, where he teaches postgraduate endodontics.
