X4 Portable Handheld Dental Intraoral X-Ray Unit

 For Sale - Dental Equipment > Office Equipment

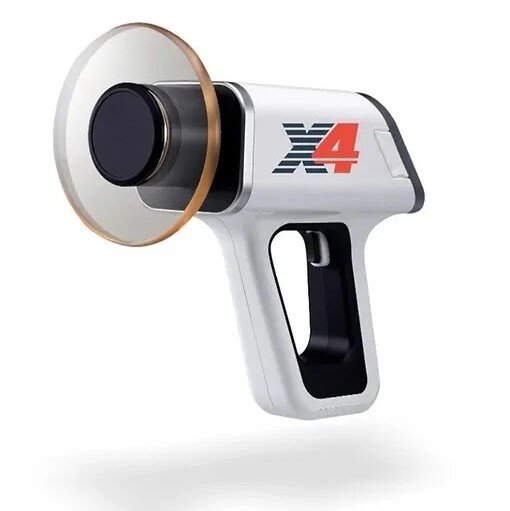

X4 Portable Handheld Dental Intraoral X-Ray Unit

The X4 X-Ray Unit technology is designed with a Carbon Nano Tube (CNT) X-ray tube to boost efficiency all while maintaining a lightweight, 4lb build. CNT tube technology is said to be more streamlined than standard filament vacuum x-ray tubes, according to a press release from the company.

Along with the CNT tube, the X4 Handheld X-Ray Unit also features a protective scatter shield that exceeds 0.5 mm Pb (lead equivalency) for user protection, per the press release. Benefitting the practitioner, this shield ensure maximum safety. The beam itself is a fixed 70kV/2mA with a 0.4 mm focal spot. Its 4lb structure is designed to reduce arm fatigue, improving the ergonomic experience for the clinician. The x-ray is indicated for a variety of procedures, but is especially useful for clinicians who perform implants or have pediatric patients or patients with more specific needs.

The X4 Handheld is said to be a power-efficient device, reportedly capturing up to 800 images per a single charge. The battery is also said to be smaller than most standard batteries, contributing to the lightweight solution.

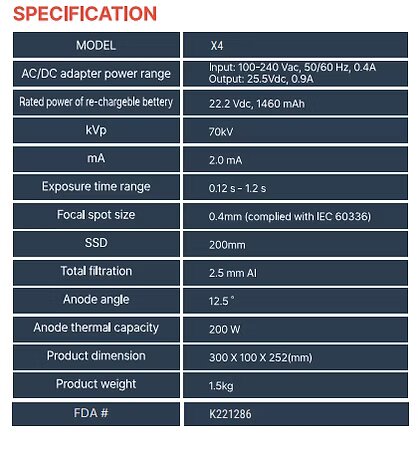

Model X-4 X-Ray Unit- (Made in S. Korea) M01-201

• Weight - 4 Lbs
• Tube Type - Carbon Nano Tube
• Focal Spot - 0.4mm for Sharp Images
• Tube Voltage - 70kV (Fixed)
• Tube Current - 2mA (Fixed)
• Lith-Ion Battery - 25.5v DCLow Power Consumption / 800Shots
• Low Dose / Less Radiation Exposure
• Long Life / over 150,000 Shots
• Mfr 3-Year Warranty-Serviced in the USA
• FDA510K Registration - # K221286

The Carbon Nano Tube Leapfrogs the Older Filament, Vacuum style.

Anode X-ray Tube Design Hasn't Changed Much in Over 50 years. Until Now!

Low Power Consumption / 800Shots

As a transmission type tube, it provides a clear image with a small current, so power consumption is low, so it can be used more than 500 shots on a full charge.

Low Dose / Less Radiation Exposure

As a transmission type tube 1 mA Tube Current (Transmission Type)

Long Life over 150,000 shot

Using a filament-free CNT digital tube, it has a long life and light weight. So, it is very easy to use, too.

No Risk of oil Leakage

No risk of leakage due to solid molding (liquid molding can cause leakage due to cracks in joints caused by expansion and contraction during heating and cooling in use)

Clear picture quality
(Small focal spot 300um) VX-30 measures using a lower voltage tube than competitors, preventing unnecessary radiation exposure.

Light Weight(1.5Kg) 3.3Lbs

It is convenient to use due to its gun-type grip and light weight.

X4 Portable Handheld Dental Intraoral X-Ray Unit

Contact us at 916-426-7620
