by Elizabeth J. Fleming, DDS,
            Clinical Director, Dentaltown Magazine

            Since I don’t surgically place implants on my patients, I work with a periodontist or an oral surgeon who will give me the specifics about the implants they place, enabling me to prepare to restore them. Using this information, I can order the implant parts ahead of time, and have the torque wrenches and drivers on hand. I have an arsenal of parts for the various implant systems.


            Could you tell which driver would be needed by having this information and viewing your assortment? If not, here is a handy guide.


            .

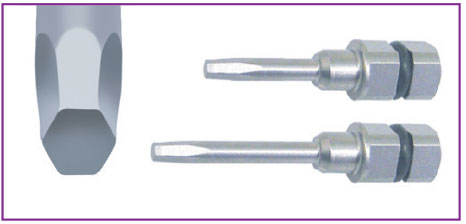

            048" (1.22mm) Hex
            .048" (1.22mm) Hex Long
            For NobelBiocare, 31, Friadent, Keystone,
            MegaGen, Hiossen

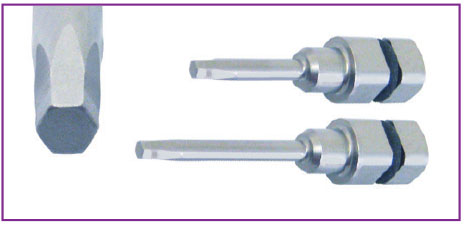

            .05" (1.25mm) Hex
            .05" (1.25mm) Hex Long
            For Zimmer, Astra, BioHorizons,  Intra-Lock, MIS, SteriOss, Sybron, Implant Direct, PerioSeal

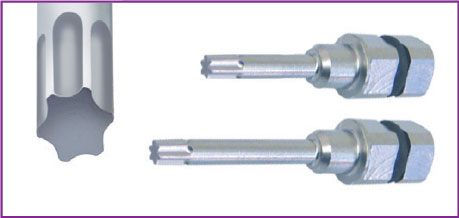

            PROC Driver • PROC Driver Long

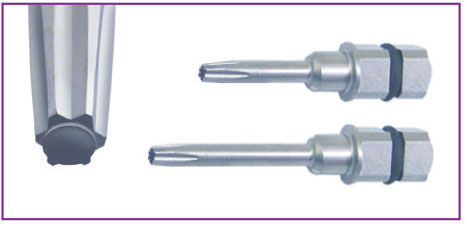

            “Star" Driver for NobelBiocare Active & Unigrip Screw, Neoss



            Screw Driver • Screw Driver Long
            Flat-Blade Screwdriver

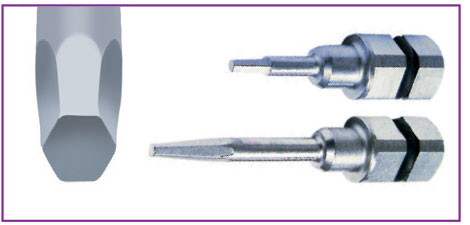

            .035" (0.9mm) Hex
            .035" (0.9mm) Hex Long
            For NobelBiocare, 31, Keystone, BioHorizons, Friadent, PerioSeal



            .05" (1.25mm) Square
            .05" (1.25mm) Square Long
            For Keystone, 31

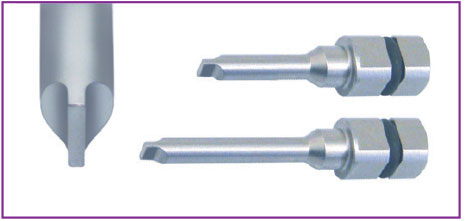

            ITI Driver • ITI Driver Long
            “ITI" Driver for Straumann SCS

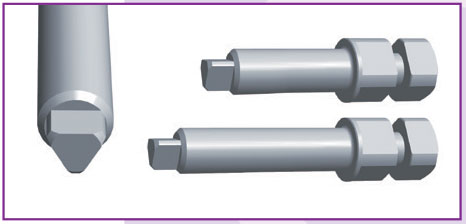

            LOC Triangle Driver
            LOC Triangle Driver Long
            For Locator™ Abutment

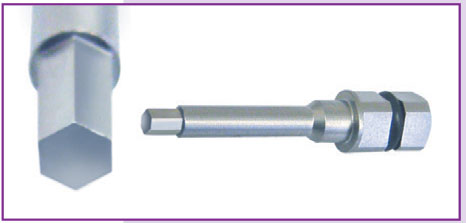

            .07" (1.7mm) Hex
            For Paragon TSI Abutment

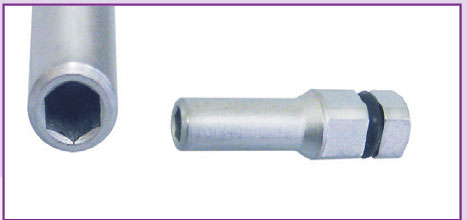

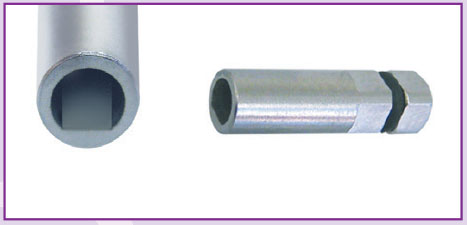

            .08" (2.03mm) Female Hex
            For NobelBiocare, 31



            TG Driver
            For 31 TG Abutment, Straumann SCS


            © 2015 Salvin.
            Reprinted with permission.


            If you place implants on your patients, likely you work with a few different implant systems and are familiar with the components. For those of us who are just restorative dentists, remembering which driver and the corresponding torque value needed to restore the various implant systems can be a challenge. To help, here is a comprehensive torque value chart from Genieoss.






             |
