The field of implant dentistry is growing and adapting to the digital
world at an extraordinary pace. Dr. August de Oliveira’s recently
released second book Guided Implantology Made Easy – a follow up to
Implants Made Easy – provides general dentists a comprehensive
overview of the process of placing implants via guided surgery. In this
book excerpt, de Oliveira discusses the use of CEREC to generate a
simple crown proposal.
CEREC Integration
I think that there is a misconception that you need to use CEREC
in order to get Guides from SiCAT. By utilizing Guide Sleeves in the
posterior, you can get a pretty good idea of where to place your implant.
However, I can say from not only using Galileos, but many other
Guided Surgery systems, that having access to CEREC greatly increases
the safety and predictability of guided surgery.
There are many uses restoratively for CEREC when it comes to
implants. You can not only mill the final restoration, but temporaries
and abutments. Unlike Implants Made Easy, this is not a book
on implant restoration so I won’t go into restoring your implant
with CEREC.
In my office I use CEREC with Galileos in five ways:
- To generate a simple crown proposal to aid in the placement of
the implant.
- To decrease the effect of noise and increase the resolution of the
teeth and soft tissue by importing a stone model.
- To import a model of a duplicate denture.
- To use the Opti Guide system by importing a full arch image of
the patient’s respective arch.
- To mill out a CEREC Guide.
Generating a Simple Crown Proposal
The difference between perfect implant placement, from a
restorative point of view, and “acceptable” is only a matter of a
few degrees. This is especially true in the anterior where the size
of the tooth root and the size of the implant are not that different.
In the posterior we can get away with more as the average

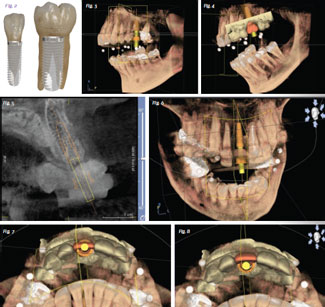

implant diameter is 5mm and the average root 10mm (Fig. 2).
In the example below (Figs. 3&4) an implant was planned using
a simple Guide Sleeve. The one on the lower right was planned with
CEREC. I think you can see that in both examples it is pretty easy
to get a good result when one has a mesial and distal neighbor.
When one lines up the Guide Sleeve with the adjacent teeth’s central
grooves, you can feel pretty confident that the final restoration will be in harmony with the adjacent teeth. Although much nicer to
look at, the CEREC restoration more or less does the same thing.
The following example (Figs. 5&6) really shows the benefit
of having a simple crown proposal. In the example below an
implant was planned looking at the adjacent teeth and the available
bone. The Guide Sleeve is lingual to the ridge and should
yield a crown with a screw access hole in the cingulum.
The image below (Fig. 7) shows the case with the CEREC
proposal entered. As you can see, I thought I planned this case
well. If this implant was placed in that orientation I would either
need an angled abutment and could not do a screw retained
restoration or if a screw retained restoration was planned the screw
hole would be on the incisal edge. In the next picture (Fig. 8) I repositioned the implant, leaving the apex where it was but
rotated the platform to the lingual.
Like the anterior, another area where CEREC really shines is
when you have a distal end case. When you have a mesial and a
distal neighbor, you have a lot of references to plan your
implant. However things get complicated when no distal tooth

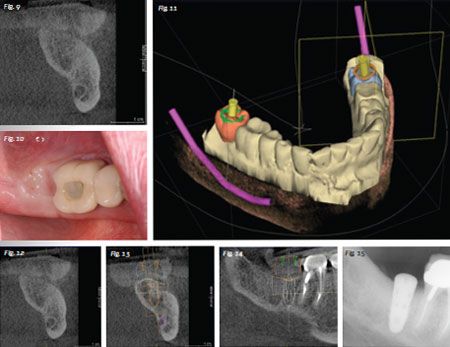

is present. Also there is a tendency to place second molar
implants too far to the distal. This may lead to a large mesial
cantilever. Due to high occlusal forces in this area, that can lead
to screw loosening or breakage, or bone loss around the implant
(Figs. 9-11).
The images (Figs. 12-15) clearly demonstrate
the benefits of this crown proposal. The Cross Sectional image
on the upper left demonstrates that there is no clear indication
of where to place the implant. However, it’s very obvious when
superimposing the CEREC data. In the lower you can see that
by having that crown form in the image, one can place the
implant in a position that avoids the distal root of the first
molar, while still placing the Guide Sleeve, and the eventual
screw hole, in the ideal restorative position.
For two or less adjacent teeth proposals I typically use
Biogeneric Individual in the CEREC software. You would start
as you would normally for designing a restoration. Select the

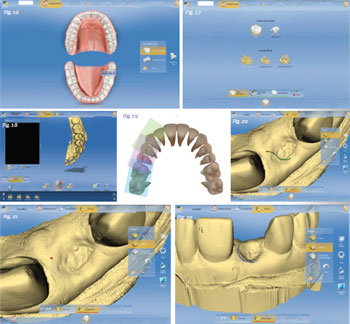

tooth or teeth in the Administration screen and select Biogeneric
Individual (Figs. 16&17). If you have a wax up or were smart
enough to either take a scan or model of the tooth before it was
extracted, you can use Biogeneric Copy.
There is no right or wrong way to take a scan. At the very
least you would want to get the adjacent teeth as well as a good
amount of the soft tissue buccal and lingual to the edentulous
space. The more scans I do, I like to get at least the whole quadrant
if not the whole arch (Fig. 18). By getting the whole arch
you can compare your CEREC proposal to the contralateral
tooth. That way if you have problems getting a decent proposal,
you can toggle the proposal off in Galileos and just look at the
contralateral side (Fig. 19).
When designing a restoration in CEREC we are used to
using the automatic margin finding feature. In designing
a proposal to be imported in Galileos we want to turn that
off and go to manual. The automatic margin finder will flop around looking for a margin and you won’t be able to get
anything decent. Trace around where you want the emergence
profile of the crown to be, not the eventual margin.
In essence you are tracing out where the tooth socket was
(Figs. 20&21).
Turn your model to the buccal and lingual and trace out the
margin (Figs. 22&23). Mimic the cervical areas of the adjacent
teeth in essence mimicking what a ridge lap pontic would do.
If you do not do this you will end up with a small or distorted
proposal. Design the crown as you would normally. I don’t
spend too much time on occlusion or working out my marginal
ridge heights. Just make sure that the crown looks like it fits in
the arch.

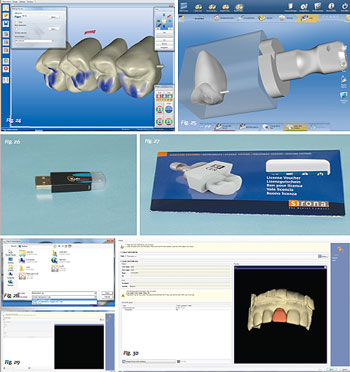

In either 3.85 or in 4.0, get to the mill preview (Figs.
24&25). Inspect the crown and just make sure it can be
exported. Look for any artifacts that may give you an error in the
exporting process.
If you are using 3.85 you will need a dongle like the one pictured
below (Fig. 26). In 4.0 there is a license manager that can
be accessed by using the “top menu.” You will need an internet
connection so that the license (Fig. 27) can be verified. Export the file as a .ssi file (Fig. 28). Sometimes it takes
the computer awhile to pull this up, so if you don’t see the
.ssi option, close the export menu and open it up again.
If you have networked your CEREC, export the file to
the appropriate drive and then export to the Galileos
Acquisition PC (Fig. 29). If not, simply export to a USB
drive. In Galileos, click the CAD/CAM menu and open the
appropriate drive.
After selecting the appropriate .ssi file, a model like
the one below will pop up (Fig. 30). Continue on to the
next window where you will select teeth on the model

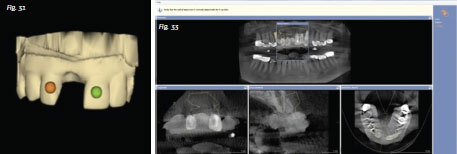

(Fig. 31) and teeth on the Pan (Fig. 32). For a full arch
model I look for the teeth with the least distortion, usually
teeth without restorations. For me, more is better, so
I may use up to 4 different points scattered throughout
the mouth. For a simple quadrant I usually just select
two teeth.
In the confirmation screen look at the yellow outline
of the model in the Pan (Fig. 33). If it is off you will see
it readily here. If it does not match up, no big deal. Just
click the “back” button. Usually this does not happen,

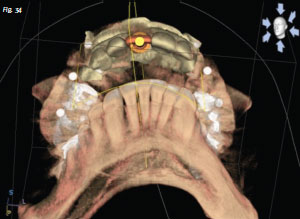

but it can. You should have a nice model that you can
plan on (Fig. 34).
|
